Small Bucket Elevator

Introduction of Small Bucket Elevator

Small bucket elevators are specially designed for users with low lifting capacity, mainly using a series of hoppers fixed on traction chains or tapes to transport various bulk materials upward in a vertical or near-vertical direction. The small bucket elevator can adjust the running speed according to the size of the conveying volume, and is suitable for vertical conveying of powdery, granular and small block and less abrasive bulk materials, such as grain, coal, cement, crushed ore, etc. The lifting height can reach 40 meters.

Technical parameters

Model	TD160				TD250				TD315				TD400
Hopper form	Q	h	zD	Sd	Q	h	zD	Sd	Q	h	zD	Sd	Q	h	zD	Sd
Delivery volume（m3/h）	5.4	9.6	9.6	16	12	22	23	35	17	30	25	40	24	46	41	66
Bucket width（mm）	160				250				315				400
Dou Rong（L）	0.5	0.9	4.2	1.9	1.3	2.2	3.0	4.6	2	3.6	3.8	5.8	3.1	5.6	5.9	9.4
Bucket distance（mm）	280		350		360		450		400		500		480		560
Bandwidth（mm）	200				300				400				500
Bucket speed（m/s）	1.4				1.6				1.6				1.8
Bulk material（mm）	25				35				45				55
Model	TD500				TD630			TD160		TD250		TD350		TD450
Hopper form	Q	h	zD	Sd	h	zD	Sd	Q	S	Q	S	Q	S	Q		S
Delivery volume（m3/h）	38	70	58	92	85	89	142	4.7	8	18	22	25	42	50		72
Bucket width（mm）	500				630			160		250		350		450
Dou Rong（L）	4.8	9	9.3	15	14	14.6	23.5	0.65	1.1	2.6	3.2	7	7.8	14.5		15
Bucket distance（mm）	500		625		710			300		400		500		640
Bandwidth（mm）	600				700			200		300		400		500
Bucket speed（m/s）	1.8				2			1		1.25		1.25		1.25
Bulk material（mm）	60				70			25		35		45		55

Application video

Small Bucket Elevatorwith Vibratory Feeder for Coffee Bean Delivery

Small Bucket Elevator for sand loading

Features and Benefits

Occupy small space, small workshop can be used for a small amount of promotion

1. The Small Bucket Elevator takes up little space and can be used for a small amount of lifting in small workshops, which can lift granular, powdery or irregular and fragile materials.

2. Less budget cost, greater lifting capacity, lifting height can be from 2 meters.

3. The inflow feeding method is adopted, no hopper is needed, and there is little collision or extrusion between materials, which prolongs the service life of the equipment.

4. The sealing is strict, which reduces the dust pollution during the conveying process.

Structure of Small Bucket Elevator

Hopper: fixed on the tape (or traction chain), there are three kinds of deep hopper - suitable for loose materials; shallow hopper - viscous materials; triangular hopper - heavy and lumpy materials

Housing: Built-in transmission and stopper.​​

Body: thin steel plate welded into a square shell, equipped with deviation alarm.

Bottom: install tensioning device.

Application

Small Bucket Elevator is suitable for small production demand and small production sites to lift and convey powdered, granular, small abrasive or non-abrasive bulk materials such as biscuits, candy, powdered sugar, cement, coal, limestone, dry clay, clinker, etc.

Solutions by Industry

•

  The factory vertically lifts granular raw materials

  Lifting height: 4 meters

•

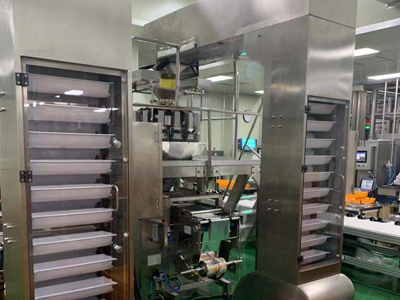

  Multiple Small Bucket Elevators are used in an arrangement

  Lifting height: 3m and 2.5m

•

  Small Bucket Elevator transporting chemical raw materials

  Lifting height: 2.5 meters

•

  Small Bucket Elevator Lifting Candy

  Lifting height: 4 meters
