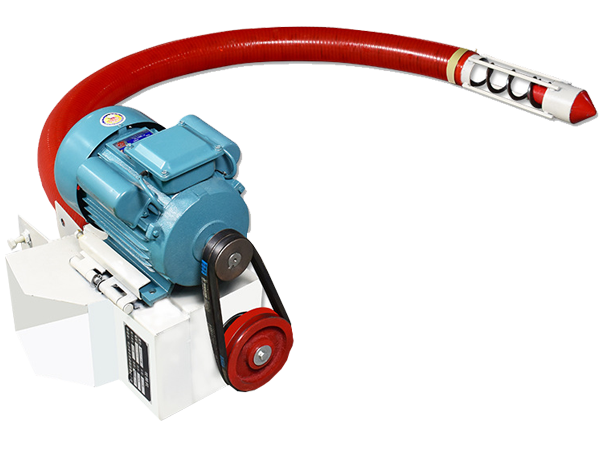

Grain Suction Machine
Grain suction machine is a bulk grain conveyor, which adopts pneumatic and motor power for truck loading and grain conveying. It is mainly suitable for the collection of wheat, corn, rice, cereal and other similar particles. It has the characteristics of small size and easy portability.
Pipe diameter: 100-160mm
Conveying distance: 3m-30m
Vertical conveying height: 3m-4m
Conveying capacity: 5-20t/h
Voltage: 220-380v or design
Volume: about 380*450*280 mm
Application: Rice, wheat, corn, rice, millet and other granular materials
Introduction of Grain Suction Machine
Grain suction machine is used for loading, unloading, replenishing, unloading, overturning, stacking in farms, docks, stations, large grain depots, etc. The mechanized operation of transportation and bulk unloading can use the pipeline layout to transport materials horizontally, inclined and vertically. It has large and small walking wheels, which is simple and convenient to operate, and can complete the transportation task independently by a single machine.
Machines have two-phase and three-phase. Select 100mm*12m or more/120mm*8m or more according to your needs. 380v voltage is required. 220v can generally increase 3m, 380v can generally increase 4~5m (data is generally grain).
Types of Grain Suction Machine
1. Portable grain suction machine
It has the characteristics of small size, high power, easy to move and easy to carry. The suction machine uses a power supply of 220v (two-phase electricity can be operated), and the length of the body can be set at 6 meters, 8 meters, and 10 meters. The machine can pump 6-8 tons of grain per hour, and the machine weight is 60-75 kg. It is suitable for the use of grain pumping in the countryside, and the labor burden is small.
2. Vehicle-mounted grain suction machine
It can be directly stuck on the raised wall of the truck box, can be bent and moved, and is easy to carry.
3、Hand Grain Suction Machine
The machine is light in weight, small in model design, and small in thrust when working, which enables it to work hand-held and reduce work intensity.
Features and Benefits
1. It can suck and transport grain, and can suck and transport granular fertilizer, feed, chemical products and other non-corrosive granular materials.
2. The whole machine can be produced with a length of 3-15 meters, and the conveying capacity per hour can reach 20 tons. It can also be customized according to the user's conveying requirements.
3. Flexible pipe and spiral design, which can be bent and used, suitable for complex transportation situations, and convenient for storage.
4. The whole machine is light in weight, small in floor space, and convenient for mobile installation.
Viedo
Hand grain suction machinefor conveying rice
Vehicle-mounted grain suction machine for corn loading and unloading
Technical parameters
| Tube diameter | length | Voltage | Power | Effectiveness | Weight |
| 100mm | 3 m | 220V | 3KW | 5-6 t | 43kg |
| 100mm | 4m | 220V | 3KW | 5-6t | 47kg |
| 100mm | 5m | 220V | 3KW | 5-6t | 51kg |
| 100mm | 6m | 220V | 3KW | 5-6t | 55kg |
| 100mm | 7m | 220V | 3KW | 5-6t | 62kg |
| 100mm | 8m | 220V | 3KW | 5-6t | 66kg |
| 100mm | 9m | 220V | 3KW | 5-6t | 70kg |
| 100mm | 10m | 220V | 4KW | 5-6t | 74kg |
| 100mm | 11m | 380V | 4KW | 5-6t | 82kg |
| 100mm | 12m | 380V | 4KW | 5-6t | 86kg |
| 120mm | 3m | 220V | 3KW | 7-8t | 48kg |
| 120mm | 4m | 220V | 3KW | 7-8t | 52kg |
| 120mm | 5m | 220V | 3KW | 7-8t | 56kg |
| 120mm | 6m | 220V | 3KW | 7-8t | 60kg |
| 120mm | 7m | 220V | 4KW | 7-8t | 60kg |
| 120mm | 8m | 220V | 4KW | 7-8t | 71kg |
| 120mm | 9m | 220V | 4KW | 7-8t | 75kg |
| 120mm | 10m | 220V | 4KW | 7-8t | 79kg |
| 120mm | 11m | 380V | 4KW | 7-8t | 89kg |
| 120mm | 12m | 380V | 4KW | 7-8t | 93kg |
| 100mm | 20m | 380V | 7.5KW | 5-6t | 150kg |
| 100mm | 25m | 380V | 7.5KW | 5-6t | 170kg |
| 120mm | 20m | 380V | 7.5KW | 6-7t | 180kg |
| 120mm | 22m | 380V | 7.5KW | 6-7t | 200kg |
Structure of Grain Suction Machine
The grain suction machine is composed of five parts: spiral tube, spiral blade, machine head, machine position and motor.
Grain suction tube: wear-resistant rubber steel wire tube, the thickness is greater than 6mm, durable and wear-resistant, low working temperature -20 ℃, sun-proof, no cracking.
Fully open enlarged foreign body bin: In the process of sucking grain, if there is a foreign body stuck on the screw, the foreign body can be removed by opening the screw, with high stability.
Spiral: The soft spiral is made of manganese steel, with high hardness, good elasticity and wear resistance.
Grain inlet: There is no dead angle for grain feeding, and it is more convenient to transport grain.
special design
Application
It is a small equipment specially designed for grain transportation, loading, stacking and storage in rural areas. It has the characteristics of small size, light weight, easy to move, high grain absorption efficiency, low damage rate, wide range of applications, safety and reliability, etc. It is very suitable for individual farmers, grain professional households and agricultural cooperatives. It can be used not only for food crops, but also for small particles such as sawdust, fertilizers, feed, etc. It is mainly used for the transportation, dumping and loading of bulk grains. The applicable materials are wheat, corn, soybeans, buckwheat, and rice. , sorghum and other agricultural crops, the hose suction machine can also be used for chemical particles and materials with high hardness and not easy to break.
Solutions by Industry
Our Factory Display
As a manufacturer of grain suction machines, Xinxiang Dahan Machinery has our own large-area factory. We have exported to the United States, India, South Africa, Dubai, Lithuania, the Netherlands and many other countries.
How To Choose The Right Grain Suction Machine Model?
If you don't know the model you want, we can help you choose the right model, please tell me the following information.
1) What is the raw material you are conveying? Its density (g/cm3) and water content (%) ?
2) How much delivery do you need per hour? (t/h)
3) What voltage and frequency do you need? (usually 380 V, 50 HZ, 3Phase or 220V, single phase, 50HZ)
4) What length or height do you need? (Meter)
Customer evaluation feedback
-
Client 2: ****f
Machine model: special-shaped custom
User evaluation: greatly reduces the labor force and saves much trouble
Customer application real shot:
-
Client 3: p***0
Machine model: 100mm*3m 3kw
User evaluation: sucking food is fast, saving a lot of time
Customer application real shot:
-
Client 4: u***n
Machine model: 120mm*5m 3kw
User evaluation: It's really easy to use, I bought it for my father and he was happy to call me and tell me, labor-saving, rest assured, convenient
Customer application real shot:
-
Client 1: ****g
Machine model: 120mm*10m 4kw
Customer evaluation: It is simply a grain harvesting artifact, which solved my difficulty in finding grain harvesting workers. The tube is made of Oxford material, which is wear-resistant and will not become hard due to the decrease in temperature.
Customer application real shot:
