Hand Grain Suction Machine

The hand-held grain suction machine can be used for loading and unloading granular grain, storage and storage, etc. The damage rate is less than 0.22%, and it can be operated by a single person.

Pipe diameter: 100-160mm

Engine power: 3kw, 4kw or customized

Voltage: 220v/380v

Transport capacity: 3-24 tons/hour

Horizontal transmission distance: 6-24m

Vertical conveying height: 6m

Application: Products used for grain conveying, suction, loading, stacking and storage, such as wheat, corn, rice, beans, especially suitable for individual farmers and granaries.

Introduction of Hand Grain Suction Machine

Hand grain suction machine is a small equipment specially designed for grain transportation, loading, stacking and storage in rural areas. It is widely used, safe and reliable, and is very suitable for individual farmers, grain households and agricultural cooperatives. It can also be used in farms, feed factories, food factories, plastic factories and other occasions for conveying pellets. It can transport wheat, soybean, corn, rice, sorghum, plastic, resin, rice and other particles. It can be transported horizontally and obliquely, which is lower than any transportation method and transportation cost.

Application

The handheld grain sucker is an efficient and convenient agricultural tool, widely used in the harvesting, transportation and storage of grain. It can not only suck grain, but also other granular materials, such as seeds, fertilizers, etc.

Loading: Insert the handheld grain sucker into the carriage, start the machine, and the grain can be quickly sucked into the carriage, which greatly shortens the loading time.

Bagging: Connect the handheld grain sucker to the bagging machine, which can automatically put the grain into the bag, improving the efficiency and accuracy of bagging.

Unloading: Insert the handheld grain sucker into the granary or the stacked grain, and the grain can be sucked out, which is convenient and quick to unload.

Video

Household hand grain suction machine

Hand grain suction machine for grain loading

Features and Benefits

1. The pipe diameter is from 50mm to 159mm, the length of the whole machine can be produced from 3-15 meters, and the output per hour can reach 20 tons.

2. The feeding port adopts a conical design, which is convenient for the feeding port to enter the interior of the material, and the feeding is fast.

3. It can be operated with a single unit, combined with multiple units or formed a conveying system with other equipment to meet different functional requirements.

4. The layout is flexible, it can be conveyed horizontally, obliquely or vertically, it can be bent or moved, and it is easy to carry.

Special customization example

According to the different driving modes, hand grain suction machine can be divided into motor type, gasoline engine type and diesel engine type. Each type of grain suction machine has its own unique characteristics and scope of application. Let's take a closer look:

1. Motor type: Motor driven, usually need to be connected to the power supply, the motor noise is small, the working environment is quieter, mainly used in fixed places or areas with power supply, such as grain warehouses, processing plants, etc., but need to be connected to the power supply, the scope of use is limited.

2. Gasoline engine: Gasoline engine driven, no external power supply is required, can be used in the field or in places without power supply, and the price is lower than the diesel engine type.

3. Diesel engine type: Diesel engine driven, no external power supply is required, the diesel engine has large torque, strong power, strong conveying capacity, and can be used in various complex working conditions.

Technical parameters

Tube diameter	length	Voltage	Power	Effectiveness	Weight
100mm	3 m	220V	3KW	5-6 t	43kg
100mm	4m	220V	3KW	5-6t	47kg
100mm	5m	220V	3KW	5-6t	51kg
100mm	6m	220V	3KW	5-6t	55kg
100mm	7m	220V	3KW	5-6t	62kg
100mm	8m	220V	3KW	5-6t	66kg
100mm	9m	220V	3KW	5-6t	70kg
100mm	10m	220V	4KW	5-6t	74kg
100mm	11m	380V	4KW	5-6t	82kg
100mm	12m	380V	4KW	5-6t	86kg
120mm	3m	220V	3KW	7-8t	48kg
120mm	4m	220V	3KW	7-8t	52kg
120mm	5m	220V	3KW	7-8t	56kg
120mm	6m	220V	3KW	7-8t	60kg
120mm	7m	220V	4KW	7-8t	60kg
120mm	8m	220V	4KW	7-8t	71kg
120mm	9m	220V	4KW	7-8t	75kg
120mm	10m	220V	4KW	7-8t	79kg
120mm	11m	380V	4KW	7-8t	89kg
120mm	12m	380V	4KW	7-8t	93kg
100mm	20m	380V	7.5KW	5-6t	150kg
100mm	25m	380V	7.5KW	5-6t	170kg
120mm	20m	380V	7.5KW	6-7t	180kg
120mm	22m	380V	7.5KW	6-7t	200kg

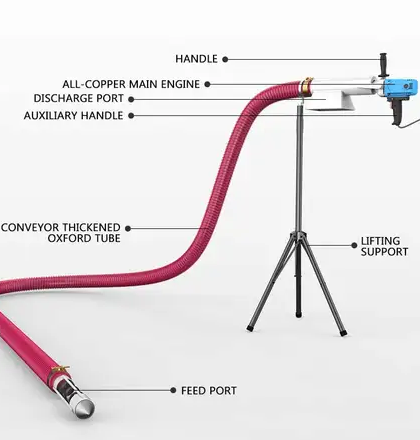

Structure of Hand Grain Suction Machine

The hand grain suction machine is mainly composed of feed inlet, beef tendon tube, screw blade, motor and other parts.

The grain suction port and the grain output port are painted to reduce wear and corrosion and prolong the service life.

The fuselage is made of PVC thickened Oxford hose, which can withstand high temperature up to 150°C and low temperature up to -40°C. It can be used in both winter and summer.

The helical blade is made of wear-resistant manganese steel, which is processed at a high temperature of 500°C, and is not easy to deform and break.

The copper core motor has stronger power and is wound with copper coils to prolong the life of the motor. The motor is guaranteed for one year.

Solutions by Industry

More Grain Conveying Equipment

1、Grain Belt Conveyor

The best choice for bulk, bagged grain or parcel delivery, low price and large delivery volume.
2、Hopper Screw Conveyor

Grain conveying equipment with silo is used for sealing and conveying bulk grain, with larger conveying capacity and more power, suitable for medium and long-distance conveying.
3、Mobile Grain Suction Machine

Compared with the Hand Grain Suction Machine, the Mobile Grain Suction Machine can be directly hung on the edge of your truck for grain or gravel loading.

Customer evaluation feedback

Client 2: ****f

Machine model: special-shaped custom

User evaluation: greatly reduces the labor force and saves much trouble

Customer application real shot:
Client 3: p***0

Machine model: 100mm*3m 3kw

User evaluation: sucking food is fast, saving a lot of time

Customer application real shot:
Client 4: u***n

Machine model: 120mm*5m 3kw

User evaluation: It's really easy to use, I bought it for my father and he was happy to call me and tell me, labor-saving, rest assured, convenient

Customer application real shot:
Client 1: ****g

Machine model: 120mm*10m 4kw

Customer evaluation: It is simply a grain harvesting artifact, which solved my difficulty in finding grain harvesting workers. The tube is made of Oxford material, which is wear-resistant and will not become hard due to the decrease in temperature.

Customer application real shot:

Factory service

Dahan Machinery is a manufacturer with 15 years of experience in the production of conveying equipment. We have dealt with tens of thousands of conveying problems. We not only provide products, but also provide the most appropriate solutions.

Our Hand Grain Suction Machine has a 1-year warranty, during which we provide free repairs for loss of quality. The company has a dedicated production team, assembly team, logistics tracking team, can provide a full set of engineering drawings, rapid design within 2 hours, no need for subcontracting steps, shorten the construction period, reduce rework, standard parts inventory, special customization can be completed within 7 working days.
