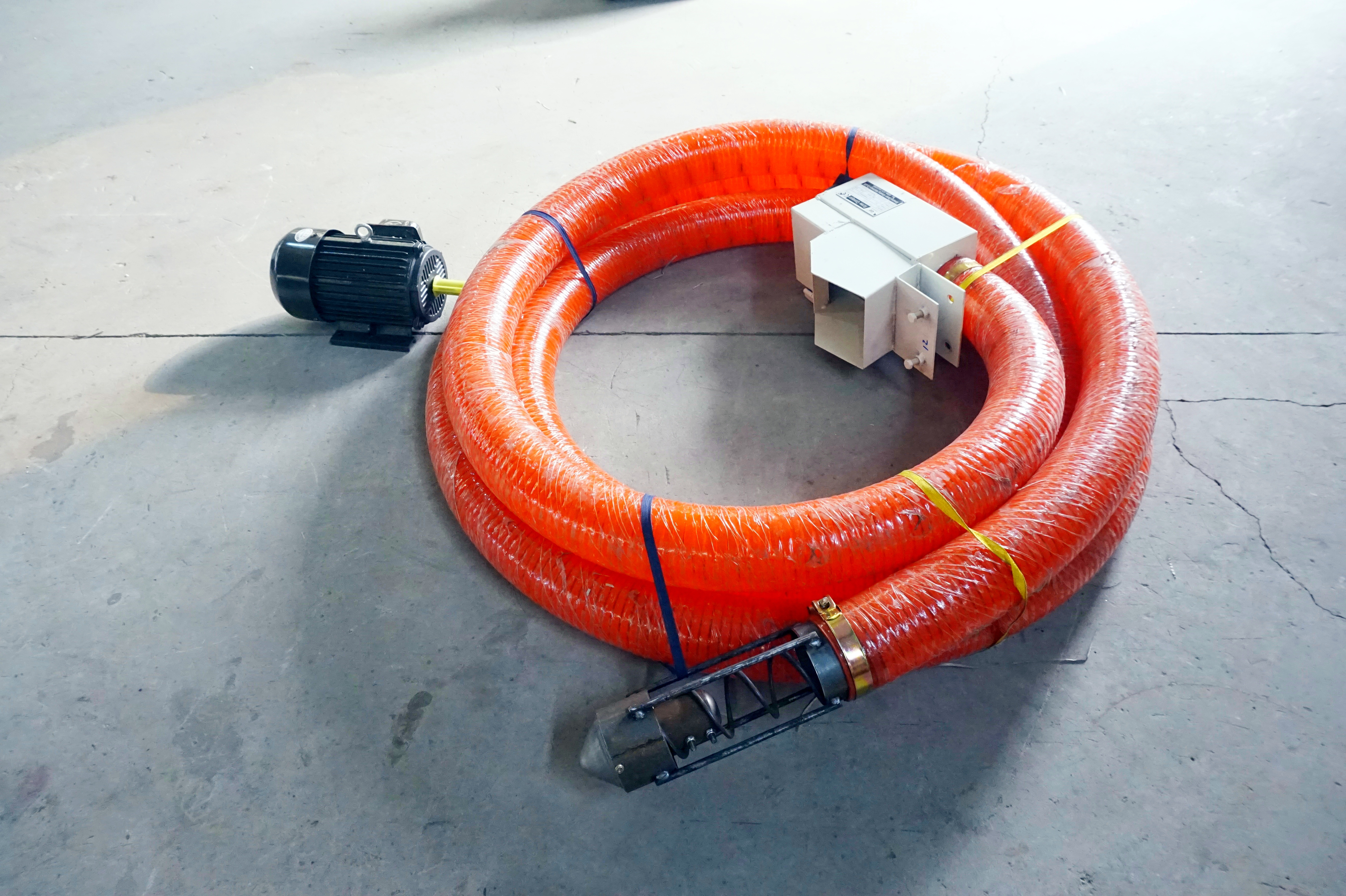

Coffee powder flexible spiral conveyor

Friday March-14 2025  14:58:26

Coffee powder flexible spiral conveyor is a device specially designed for conveying coffee powder and other powdery, granular materials, widely used in processing and related industries. Its unique flexible spiral design allows it to achieve flexible and efficient material transportation in complex spaces, especially suitable for the transportation of coffee powder and othery, granular materials.

What is the working principle of coffee powder flexible spiral conveyor?

Coffee powder flexible spiral conveyor works by driving the flexible spiral to rotate pushing the material from the feed port to the discharge port. Its working process is as follows:

①Feeding: Coffee powder enters the conveying pipe from the port.

②Conveying: The flexible spiral rotates, pushing the coffee powder to move along the conveying pipe.

③Discharge: The coffee is discharged from the discharge port and enters the next process or storage bin.

What are the types of coffee powder flexible spiral conveyor?

1.Handheld coffee powder flexible spiral conveyor:

①Designed for handheld operation

②Suitable for small-scale coffee powder transportation tasks

③Ideal for scenarios that require mobility and flexibility, such as coffee shops or small production facilities

2.Standard coffee powder flexible spiral conveyor：

①Designed as a fixed unit, installed on production lines processing equipment

②Used for large-scale coffee powder transportation tasks

③Suitable for industrial production environments, ③capable of meeting the transportation needs of large quantities of coffee powder

3.Vehicle-mounted coffee powder flexible spiral conveyor：

①This design is for installation on vehicles

②Used for mobile coffee powder transportation tasks

③Suitable scenarios where coffee powder needs to be transported between different locations, such as between coffee manufacturers or different production lines

Coffee powder flexible spiral conveyor table

Type	Characteristics	Transportation Capacity	Application Scenarios	Advantages	Limitations
Handheld	Portable, small, adjustment	Tens of kilograms/hour	Small coffee shops, temporary refueling	Flexible, low cost	Small capacity, not suitable for continuous production
Standard	Fixed installation, industrial grade	Hundreds of kilograms-several tons/hour	Medium processing plants, packaging lines	High efficiency, automation possible	Poor mobility, need to plan space
Vehicle-mounted	Mobile platform, extendable	Hundreds of kilograms-several tons/hour	Mobile station, multi-point refueling	Strong mobility, multi-scene adaptability	High cost, complex maintenance

What are the advantages of the coffee powder flexible spiral conveyor?

1. Addressing coffee powder loss and contamination issues: powder is a fine particle material that can easily cause certain losses during the conveying process. Coffee powder flexible spiral conveyor operates at a low speed, which can the integrity of the coffee powder particles and reduce the damage and loss of flavor.

2. Solving the problem of coffee powder residue: Residue of coffee in the conveying equipment can affect the quality of the next batch of materials and even cause cross-contamination. Coffee powder flexible spiral conveyor can push material completely to the discharge port, reducing residue.

3. Addressing the problem of flavor loss in coffee powder: Coffee powder may suffer flavor loss during the conve process due to friction, oxidation, or heat. Coffee powder flexible spiral conveyor uses a closed environment, which reduces the contact between coffee powder and air, oxidation.

4. Solving the problem of coffee powder blockage: Coffee powder can easily clog during the conveying process due to humidity or uneven particle. The flexible spiral of coffee powder flexible spiral conveyor has a certain elasticity, which can adapt to the change in the fluidity of the material and reduceage.

Technical parameters of the coffee powder conveying flexible spiral conveyor

Diameter	Length	Voltage	Power	Capacity	Weight
100mm	3m	220V	3KW	5-6T	43kg
100mm	4m	220V	3KW	5-6T	47kg
100mm	5m	220V	3KW	5-6T	51kg
100mm	6m	220V	3KW	5-6T	55kg
100mm	7m	220V	3KW	5-6T	62kg
100mm	8m	220V	3KW	5-6T	66kg
100mm	9m	220V	3KW	5-6T	70kg
100mm	10m	220V	4KW	5-6T	74kg
100mm	11m	380V	4KW	5-6T	82kg
100mm	12m	380V	4KW	5-6T	86kg
120mm	3m	220V	3KW	7-8T	48kg
120mm	4m	220V	3KW	7-8T	52kg
120mm	5m	220V	3KW	7-8T	56kg
120mm	6m	220V	3KW	7-8T	60kg
120mm	7m	220V	4KW	7-8T	60kg
120mm	8m	220V	4KW	7-8T	71kg
120mm	9m	220V	4KW	7-8T	75kg
120mm	10m	220V	4KW	7-8T	79kg
120mm	11m	380V	4KW	7-8T	89kg
120mm	12m	220V	4KW	7-8T	93kg
100mm	20m	380V	7.5KW	5-6T	150kg
100mm	25m	380V	7.5KW	5-6T	170kg
120mm	20m	380V	7.5KW	6-7T	180kg
120mm	22m	380V	7.5KW	6-7T	200kg

Application of Coffee Powder Flexible Spiral Conveyor

1. Transportation of coffee powder after grinding

Application: After coffee beans are ground, the coffee powder needs to be transported to the packaging line or mixing line. Coffee powder flexible spiral conveyor can easily transport the fine coffee from the grinder to the packaging area.

2. Coffee powder from warehouse to production line

Application scenario: Transport coffee powder from the storage container in the warehouse to the production line, and coffee powder flexible spiral conveyor for further processing or mixing.

3. Ingredient for mixing system

Application scenario: When mixing coffee with other ingredients, coffee powder flexible spiral conveyor can transport coffee powder to the mixing equipment.

4. Transportation of coffee powder before packaging

Application scenario: In the packaging stage of coffee powder, coffee powder flexible spiral conveyor can transport coffee powder from the storage bin to the packaging machine.

Coffee powder flexible spiral conveyor, with its flexible conveying capacity and efficient performance, its dust-free low noise, and easy-to-clean characteristics, has become an indispensable equipment in the coffee processing industry. With proper use and maintenance, the flexible spiral conveyor significantly improve production efficiency and ensure the quality and flavor of coffee powder.
