Limestone Hopper Bucket Elevator
Saturday July-22 2023 17:14:11
Introduction
Limestone hopper bucket elevator is a commonly used material conveying equipment, which is mainly used in the process of lifting powdery, granular or small block materials from the bottom to the top. Limestone and other materials are conveyed from low to high by bucket elevators to achieve the purpose of vertical lifting. This equipment has the characteristics of simple structure, low noise, high efficiency and stable operation.
Structures

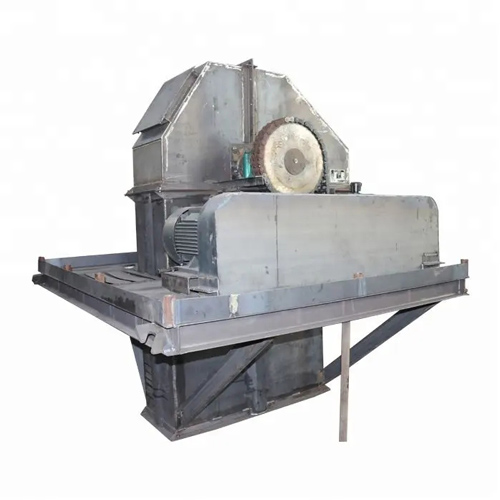

Limestone hopper bucket elevator is composed of hoist hub, cylinder shell, transmission device, upper cover plate, lower cover plate and other parts. It is mainly composed of hopper, upper driving wheel, lower support wheel, pull rope, motor, reducer and so on.
Working Principle
The working principle of the limestone hopper bucket elevator is to drive the reducer through the motor, and connect the transmission device with the upper driving wheel. When the motor starts to run, the hoist hub starts to rotate, and the pull rope passes through the upper driving wheel and the lower supporting wheel, and the hopper is lifted from the bottom to the top under the action of the hoist hub. After the hopper reaches the target position, by controlling the rotation direction of the upper and lower driving wheels, the hopper is tilted to discharge the material, and the unloading process of the material is completed.
Features and Benefits
1. Simple structure and convenient operation: The main components of the hoist are relatively simple, easy to maintain, easy to operate, and do not require too many professional skills.
2. Large lifting height: The lifting height of the limestone hopper bucket elevator can reach more than 50 meters, which is suitable for material transportation of high-rise buildings.
3. Strong transportation capacity: the design of the hoist hub is reasonable, the transmission device is stable and reliable, it can carry a large amount of materials, and the transportation efficiency is improved.
4. Wide range of application: the hoist is suitable for lifting various powdery, granular or small lump materials, and is widely used in building materials, chemical industry, metallurgy, mining and other industries.
5. Small space occupation: The limestone hopper bucket elevator has a compact structure and a small occupation space, which is suitable for use in limited spaces.
Technical Parameters
Limestone Hopper Bucket Elevator in Industry
Limestone hopper bucket elevators are widely used in industry. The following are several main application areas:
1. Mines and Quarries: Limestone Hopper Bucket Elevators are widely used to lift limestone from underground or quarries to the surface. It can efficiently process large volumes of limestone and convey it to crushers or other processing equipment for further processing.
2. Cement factory: Limestone is one of the important raw materials for cement production. Limestone hopper bucket elevator can lift limestone from storage warehouse to crusher or coal mill. It can realize efficient hopper lifting and ensure sufficient supply of raw materials.
3. Metallurgical industry: A large amount of limestone is often used in the metallurgical industry. Limestone hopper bucket elevators can be used to lift limestone to blast furnaces or other smelting equipment. It can realize fast, stable and continuous hoisting of the hopper to meet the needs of the smelting process.
4. Glass manufacturing: Limestone is one of the main raw materials for making glass. Limestone hopper bucket elevator can lift limestone to glass furnace for melting. It can ensure accurate feeding and stable supply of raw materials and improve production efficiency.
