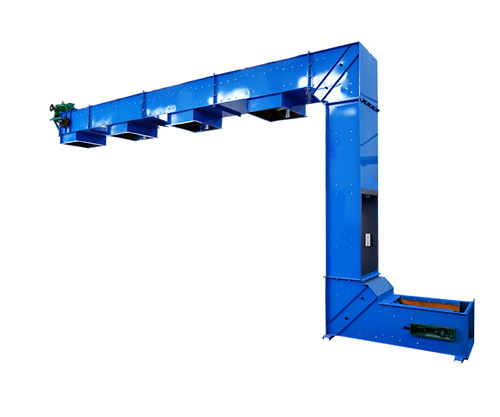

Z Type Heavy Duty Belt Bucket Elevator for Clinker

Wednesday July-26 2023  12:32:00

What is Z Type Heavy Duty Belt Bucket Elevator for Clinker?

Z-type heavy duty belt bucket elevator for clinker is a kind of mechanical equipment used for vertical or inclined transportation of bulk materials (such as clinker, ore, coal, etc.). The Z-shaped design allows the hoist to transport materials along horizontal, inclined and vertical directions, suitable for various industrial and mining applications. The hoist has the advantages of simple structure, reliable operation, large conveying capacity, and small footprint.

Composition structure:

1. Driving device: The driving device of the hoist is usually composed of a motor and a reducer, and works by driving a roller or a belt.

2. Bucket elevator: The bucket suspended on the chain lifts the material from the bottom to the top through the work of the sprocket and the chain.

3. Upper unloading device: The highest point of the hoist is equipped with a unloading device, which is used to unload the material to the conveying equipment at a high place.

4. Support frame: Support the structure of the bucket elevator to ensure the stability and safety of the equipment.

5. Rails: Used to support the bucket elevator and ensure that the bucket moves along the set path.

Working Principle:

1. After starting to work, the driving device starts, and the roller or belt is driven to run through the motor and reducer.

2. The material enters the upper part of the elevator from the feed port and falls into the bucket.

3. With the operation of the drum or belt, the bucket elevator starts to lift vertically.

4. When the bucket elevator reaches the highest point, the loading and unloading device unloads the material and transfers it to the high conveying equipment.

5. The bucket returns to its original position under the action of gravity and is ready to receive the next batch of material.

6. Continuously circulate until the material is completely conveyed to the designated position.

Types:

1.Multi Discharge Z Type Bucket Elevator：

2-7 discharge ports are available, multiple inlets and multiple discharge points can be combined into one system to combine or separate product streams as needed, which can meet the continuous feeding of multiple silos in a row.

2.Stainless Steel Z Type Bucket Elevator：

The casing is made of SUS304 stainless steel, PP plastic hopper, anti-corrosion, high temperature resistance, mainly used in chemical, plastic, grain, pet food, puffed food, food packaging and other industries.

Advantages:

1. Compact structure: Z-type heavy duty belt bucket elevator for clinker adopts the Z-type transmission form, which combines horizontal and vertical parts, has a compact structure and a small footprint, and is suitable for scenes with limited space.

2. Strong transportation capacity: The bucket elevator adopts a heavy-duty belt and a large-capacity bucket, which has a large carrying capacity and can efficiently transport materials such as large particles and high-temperature clinker.

3. Safe and reliable transportation: Z-type heavy duty belt bucket elevator for clinker adopts belt drive, which has stable transportation performance, reduces the possibility of material spillage, and ensures the safe transportation of materials.

4. Adjustable transport height: The height of the bucket elevator can be adjusted according to the demand, which is suitable for material transport needs of different heights.

5. Easy maintenance: The bucket elevator has a simple structure and is easy to maintain, which reduces the difficulty and time of maintenance work.

Technical Parameters

Uses:

1. Cement industry: In the cement production process, it is often necessary to transport clinker from the ground or the place where the clinker mill is produced to the kiln or firing system. Z-type heavy duty belt bucket elevator for clinker can effectively lift and transport clinker to meet the needs of cement production.

2. Mining industry: In the mining industry, it is often necessary to transport ore, coal and other materials from the ground or output to other processing equipment. Z-type heavy duty belt bucket elevator for clinker can adapt to different conveying distances and heights to meet the needs of the mining industry for material conveying.

3. Metallurgical industry: In the metallurgical industry, it is often necessary to transport smelted metal slag, waste and other materials to other equipment for subsequent processing. The high load-bearing capacity and stability of the Z-type heavy duty belt bucket elevator for clinker make it a commonly used material conveying equipment in the metallurgical industry.

4. Power industry: In the power industry, it is often necessary to transport coal and other materials from the coal storage yard to the boiler room for combustion. Z-type heavy duty belt bucket elevator for clinker can adapt to special conveying requirements such as high temperature and large particles, and meet the requirements of the power industry for material conveying.
