Portable Screw Conveyor

Introduction of Portable Screw Conveyor

The portable screw conveyor is a special design form of the conventional screw conveyor. The purpose is to more easily adapt to the transportation occasions where the transportation site changes frequently or only temporary transportation needs. The portable design realizes the flexibility of the application and more possibilities sex. The portable screw conveyor can be used for both outdoor and indoor applications. The tiltable design enables it to be used in loading vehicles or transporting materials in three-dimensional spaces, or to realize the connection between two devices.

Portable screw conveyor can complete centralized conveying, separate conveying, mixing, dehydration, custom batching, unloading, stacking, and use with other conveying equipment.

Type

Carbon steel: Q235 carbon steel material, suitable for conveying common materials.

Stainless steel: Made of 304 or 316 stainless steel, it is resistant to acid and alkali corrosion, high temperature resistance of 200 °C, clean and hygienic, anti-rust, suitable for industries with relatively strict sanitary conditions such as food and medicine.

Inclination: use the motor to drive the screw to rotate through the reducer, and through the rotation, the material is moved along the fixed casing and conveyed to the predetermined position. The inclination angle is 0-60°, and the conveying length is generally not more than 6 meters ( Can be customized according to your production site conditions)

Vertical: Using the centrifugal force generated by the high-speed spiral body in the vertical circular shell, with the help of the friction force between the material and the shell, it overcomes the friction force between the material and the surface of the spiral, as well as the component force that slides down the spiral caused by the material's own weight. Lift up. The lifting height is generally not higher than 5 meters.

Application

Portable screw conveyors are used in a wide range of industrial and agricultural applications where the need for material transport may arise in different parts of a facility or across multiple locations. Some of the common applications of portable screw conveyors include:

Agriculture: Commonly used to transport grain, seeds and other crops. They can be used to transfer material from storage bins to trucks or vice versa, providing efficient and flexible material handling solutions.

Construction: For conveying concrete, sand and other construction materials in construction projects. They can be easily moved from one location to another and can transport materials to hard-to-reach areas.

Manufacturing: Can be used in manufacturing factories to transport raw materials, finished products and scrap. They can be customized to meet specific material handling requirements and can be easily moved to different parts of the plant as needed.

Mining: Can be used in mining operations to transport ore, minerals and other materials. They can be used to transport material from a mine to a processing plant or from one part of a processing plant to another.

Food processing: used to transport food raw materials, finished products and waste. They can be designed with food-grade materials and can be easily cleaned to meet hygiene requirements.

video

Vertical Portable Screw Conveyor Conveying Lime Powder

Inclination Adjustable Portable Screw Conveyor Conveying Sawdust

Features and Benefits

1. The universal wheel installed at the bottom of the Portable Screw Conveyor can rotate 360°, and can be braked and fixed during conveying operation, which can flexibly adapt to the conveying scene of unfixed position.

2. Inclined or vertical conveying, any angle within 30~90° can be customized, usually the inclination angle does not exceed 45°.

3. The conveying capacity can reach 142 cubic meters per hour, and the length can be up to 30 meters when it is inclined conveying, and the height can be up to 5 meters when it is vertically lifted.

4. The shell is connected by steel pipes through flanges, and the parts are connected as a whole, with good sealing performance, which will not pollute the site or cause material waste when conveying powder.

5. The screw motor and the vibration motor are independently controlled. The material box is designed as a separate type. The material box vibrates and the amplitude is adjustable, which is easy to load and unload.

6. The screw can be reversed for discharging, the lower end of the material tube has a gate for discharging, and the whole screw can be easily taken out.

Technical Parameters

Model		Diameter (mm)	Pitch (mm)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)
Small	100	100	100	140	2.2	112	1.7	90	1.4	71	1.1
	125	125	125	125	3.8	100	3	80	2.4	63	1.9
	160	160	160	112	7.1	90	5.7	71	4.5	56	3.6
	200	200	200	100	12.4	80	9.9	63	7.8	50	6.2
Small	250	250	250	90	21.8	71	17.2	56	13.6	45	10.9
	315	315	315	80	38.8	63	30.5	50	24.2	40	13.4
	400	400	355	71	62.5	56	49.3	45	38.6	36	31.7
Large	500	500	400	63	97.7	50	77.6	40	62	32	49.6
	630	630	450	50	138.5	40	110.8	32	88.6	25	69.3
	800	800	500	40	198.5	32	158.8	25	124.1	20	99.3

The portable screw conveyors produced by Dahan Company are available in various models, and we can also customize them according to your needs.

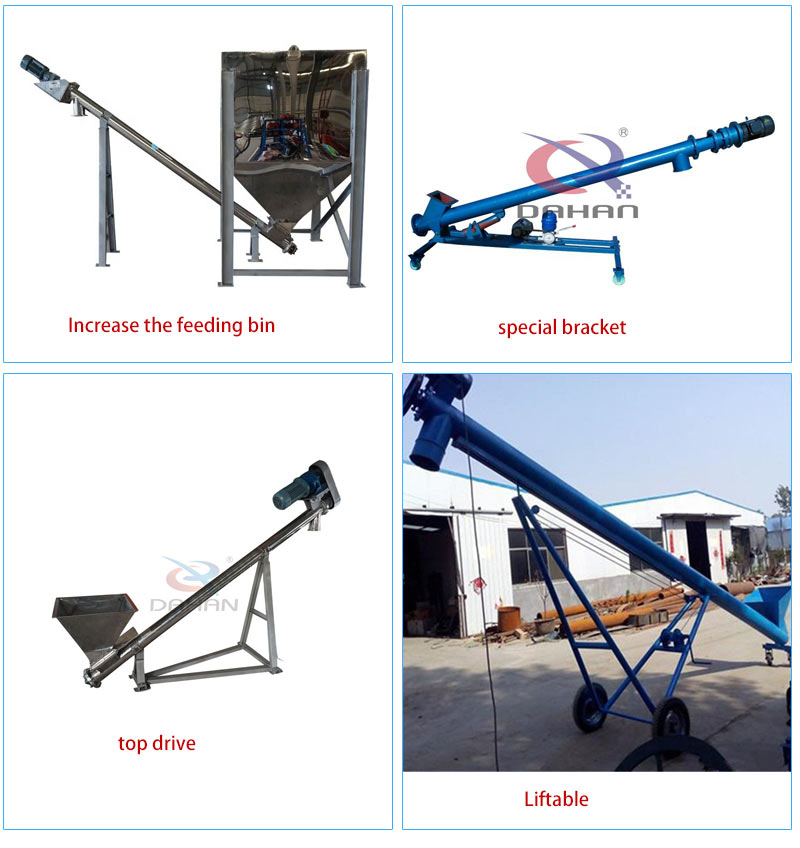

special design

1、Increase the feeding bin：

It has its own material storage bin, which can cooperate with large-scale feeding equipment to realize a large amount of continuous feeding, and has a certain storage function.

2、special bracket：

The special mobile wheel bracket, the type of bracket adjusted according to the actual situation of the site, adapts to the requirements of the actual site.

3、top drive：

It is used for long-distance or difficult-to-transport materials to increase the pulling capacity.

4、Liftable：

The height-adjustable movable support is suitable for situations where the conveying height changes frequently, and is usually used for conveying small and medium-sized materials.

Product structure and details

Portable screw conveyor is mainly composed of inlet and outlet, adjustable bracket, motor and reducer, spiral and spiral pipe, moving wheel and other structures.

Inlet and outlet: used for feeding and discharging;

Adjustable bracket: it can be adjusted in a certain range according to the inclination angle in actual transportation, and can be designed as a fixed bracket;

Motor and reducer: provide power for material conveying;

Spiral and spiral pipes: provide space for material transportation and specify the direction of material transportation, usually sealed design;

Movable wheels: The key structure of the portable screw conveyor, and the movable wheels that

Options for Portable Screw Conveyor

Material	Feed hopper	Auger	Drive
carbon steel	flange connection ring	conventional	fixed speed
carbon steel painted	Standard size	Shaftless	variable speed
Stainless Steel Type 304	cone	ribbon	Explosion-proof
Stainless Steel 316L Type	square	dentate	water proof
Manganese steel	multiple	paddle	Special custom
plastic	other	other

Other Portable Conveying Equipment

project	portable screw conveyor	Mobile Conveyor Belt	Mobile Grain Suction Machine
Advantage	Sealed transportation without dust	Simple structure, less cost, large conveying capacity	Ideal for home or farm delivery, best results for the least amount of money
shortcoming	Unable to transport large particle materials	Not recommended for conveying powder materials	It is only used for the conveying of grain or grain-like particles, and the application range is narrow
slope	≤90°	Inclined conveying below 50° is recommended	≤90°
Delivery capacity	stronger	powerful	generally
Application	Particle and powder conveying places that require frequent movement	Packages, granules or irregular lumps that require frequent movement	Special equipment for granular grain transportation

Solutions by Industry

•

  portable screw conveyor with mixer

•

  Stainless Steel Portable Screw Conveyor with optional vibrating screen

•

  Stainless Steel Portable Screw Conveyor with Covered silo design

•

  Portable Screw Conveyor with dust-free feeding station

•

  Portable screw conveyor with packaging machine

•

  Portable screw conveyor with granulator

Here are customer cases of portable screw conveyors:

• Construction company



  A constructioncompany in Europe needed a screw conveyor to transport sand and gravel to a hard-to-reach area of a building site. They chose a mobile screw conveyor with a hopper and a portable frame that could be easily moved by a forklift. The system was customized with a longer screw length and a larger diameter to handle the volume of material required for the project.

• Grain trading company



  A grain farm in the Midwest of the United States needed a screw conveyor to transport grain from their storage bins to a truck for transport to a nearby processing facility. They chose a portable screw conveyor with a hopper and discharge chute that could be easily moved between different locations on their farm. The system was customized with a flexible connection and a dust control system to prevent dust emissions during the material transfer process.

• Mining Industry



  A mining operation in South America needed a screw conveyor to transport ores and minerals from a mine to a processing plant located several kilometers away. They chose a portable screw conveyor with a silo and a trailer-mounted frame that could be easily transported by a truck. The system was customized with a longer screw length and a higher capacity silo to handle the large volumes of material required for the operation.
