rubber particle screw conveyor

It is a conveying system for horizontal or inclined conveying of rubber granules. It is commonly used in the recycling industry to transport rubber granules from one location to another.

Spiral diameter: 140-290mm

Conveying length: 30-60 meters

Delivery capacity: 1.4-458 cubic meters per hour

Delivery angle: 0-60°

Product introduction of rubber particle screw conveyor

A rubber particle screw conveyor is a type of conveyor system used in the rubber recycling industry to move rubber particles from one location to another. Rubber particle screw conveyors are designed to ensure the safe and efficient handling of rubber particles, which can be difficult to move using other types of conveyor systems.

Rubber particle screw conveyors can be customized to fit the specific needs of the operation, including the size and shape of the trough, the diameter and pitch of the screw blade, and the material of construction. They can be used to handle a variety of rubber particles, including ground rubber, shredded tires, and other recycled rubber materials.

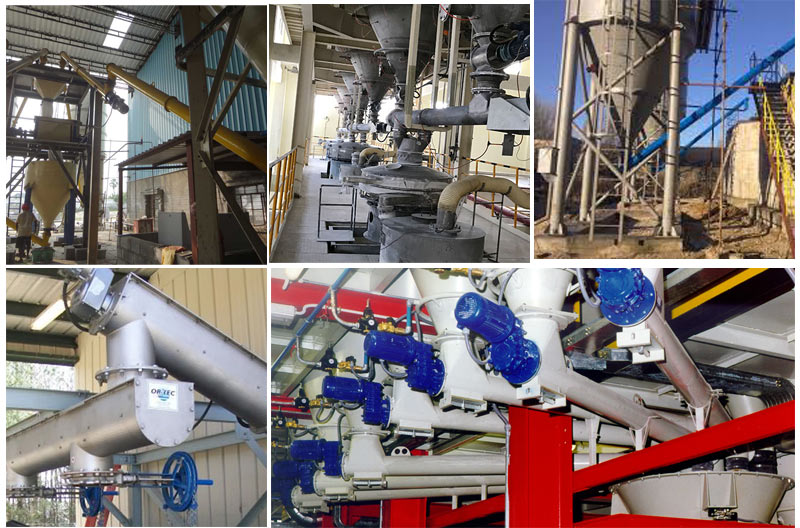

Application

The following are some common applications of screw conveyors in rubber granulate processing:

Material Conveying: Used to move rubber granules from one location to another, such as from a storage container to a processing or packaging machine. The screw inside the conveyor rotates, forming a helical path along the inside of the trough, moving the rubber particles along the trough to the discharge end.

Mixing: Can be used to mix rubber granules with other materials such as binders or colorants. The screws within the conveyor can be designed with mixing flights to help evenly distribute the material and ensure consistent mixing.

Cooling: Can be used to cool rubber granules prior to packaging or further processing. Conveyors can be designed with jacketed troughs, and cooling water can be circulated through the jackets to remove heat from the pellets.

Product advantages

1. The pipe wall is smooth, the suspension bearing bracket has no structural protrusions, the resistance of transportation is reduced, and blockage is avoided;

2. Large conveying capacity: 458 cubic meters per hour for mass conveying, ensuring to meet the actual production demand;

3. Long-distance conveying: the conveying distance of a single machine can reach 70 meters, and multiple conveyors can be connected and used;

4. There are various forms of transportation, which can be selected and designed according to different scene layouts and requirements.

Video

Model parameters

Model		Diameter (mm)	Pitch (mm)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)
Small	100	100	100	140	2.2	112	1.7	90	1.4	71	1.1
	125	125	125	125	3.8	100	3	80	2.4	63	1.9
	160	160	160	112	7.1	90	5.7	71	4.5	56	3.6
	200	200	200	100	12.4	80	9.9	63	7.8	50	6.2
Small	250	250	250	90	21.8	71	17.2	56	13.6	45	10.9
	315	315	315	80	38.8	63	30.5	50	24.2	40	13.4
	400	400	355	71	62.5	56	49.3	45	38.6	36	31.7
Large	500	500	400	63	97.7	50	77.6	40	62	32	49.6
	630	630	450	50	138.5	40	110.8	32	88.6	25	69.3
	800	800	500	40	198.5	32	158.8	25	124.1	20	99.3

product structure

The rubber particle screw conveyor is mainly composed of inlet and outlet, pipe body, screw blade, reducer and driver.

Inlet and outlet: It can be connected with other feeding or discharging equipment.

Tube body: a container mainly used to load rubber particles, which can be designed in tube or U shape according to the actual situation.

Spiral blade: the main force to push the rubber particles forward. The material and thickness of the spiral blade can be replaced and adjusted.

Reducer and driver: provide power for conveying rubber particles, and at the same time limit the screw rotation speed through the reducer to ensure conveying efficiency and production safety.
