soybean screw conveyor

product description

Soybean screw conveyor is mainly used for conveying soybean, corn, rice, wheat, flour, starch and other powder or granular materials. There are three types of conveying methods: horizontal, inclined and vertical. Moving wheels can be installed on the soybean screw conveyor according to the requirements of the conveying site. There are two materials, stainless steel and carbon steel, which can be selected according to the specific application of soybeans.

Why choose soybean screw conveyor

There is no doubt that among soybean screw conveyors, belt conveyors, and bucket elevators, screw conveyors will cause greater damage to soybeans during the transportation process, so why choose screw conveyors to transport soybeans?

Of course, I have to give an explanation here. If soybeans are not sold as a separate product, but need to be processed into edible oil, feed or food, and used in oil factories, food or feed processing plants, then use screw conveyor to process soybeans. Transport is not affected.

The reason why this is said is that the soybean crops that need to be ground (not used as seeds or sold as commodities) do not need to think too much about the damage caused by the extrusion and impact of the steel screw during the transportation process.

Applications

If the soybean screw conveyor is used to process soybeans, it is more common in soybean product processing factories, oil factories or food processing factories. If the soybean screw conveyor is used in other industries, it can also be used to convey flour, rice, wheat and other powders, which are hard and not easy to break If it is a dicotyledonous crop that needs to be used as seeds or sold as a commodity, we do not recommend the use of soybean screw conveyor.

When soybean screw conveyor is used to transport soybeans, it is usually used in conjunction with soybean dryers, grinders, oil presses, roasting machines and other equipment to evenly and continuously feed materials into soybean processing equipment.

Features

1. Conveying distance: The conveying length of a single machine is 3-30m, and the segmented installation can reach 100m, which meets the distance requirements of different grain transportation sites.

2. Spiral design: compact structure, space-saving, beautiful appearance, easy operation, economical and durable.

3. Good performance: the helical blade pushes the smooth soybeans forward to the designated direction, and the inclination angle can also be transported, and there will be no slipping phenomenon and the phenomenon that soybeans cannot advance.

4. Inlet and outlet: single or multiple inlets and outlets can be selected according to the specific conditions of soybean transportation, and can be flexibly matched with the layout of the production line.

Video

Model parameters

Model			LSY100	LSY120	LSY140	LSY160	LSY200	LSY250	LSY300	LSY400
Shell tube diameter (mm)			Φ114	Φ133	Φ168	Φ194	Φ219	Φ273	Φ325	Φ402
Angle (α)			0°～60°
Conveying capacity (m)			8	10	12	14	15	18	20	25
Conveying capacity (t/h)			6	12	17	28	45	70	130	150
Moter	Model	L≤7	Y90S-4	Y100L1-4	Y100L2-4	Y132S-4	Y132M-4	Y160M-6	Y160L-4 Y180M-4	Y180L-4
	Power(KW)		1.1	2.2	3	5.5	7.5	11	15-18.5	22
	Model	L＞7	Y100L1-4	Y100L2-4	Y112M-4	Y132M-4	Y160M-6	Y160L-4 Y180M-4	Y180M-4 Y180L-4	YH200L-4
	Power(KW)		2.2	3	4	7.5	11	15	18.5-22	20-30

product structure

soybean screw conveyor is mainly composed of driving device, head section, middle section, tail section, head and tail bearings, feeding and discharging device and other parts.

1. The connection between the screw shaft and the suspension bearing, the head and the tail shaft are all connected by the embedded tongue, the installation and disassembly do not need axial movement, and the maintenance is convenient. Long mandrel, less hanging, less failure points.

2. The variable diameter structure is adopted to increase the volume of the hanging bearing to avoid the contact between the hanging bearing and the material, and the life of the hanging bearing can reach more than two years.

3. Each transmission part adopts floating connection mode, and the hanging bearing is a universal joint structure, so that the spiral body, hanging bearing and tail assembly form a whole rotating floating body, which can freely rotate and avoid with the conveying resistance within a certain range, without material jam, No clogging. 4. Both the head and tail bearing seats are outside the shell, and all bearings adopt multi-layer sealing and matching sealing technology, so the service life of the bearings is long.

Options

1. Unfixed adjustable height bracket

2. Movable pulley

3. Carbon steel/stainless steel/other materials

4. Single or multiple screw shafts

5. Tubular or U-shaped conveying trough

6. Single or multiple outlets

7. Add padding

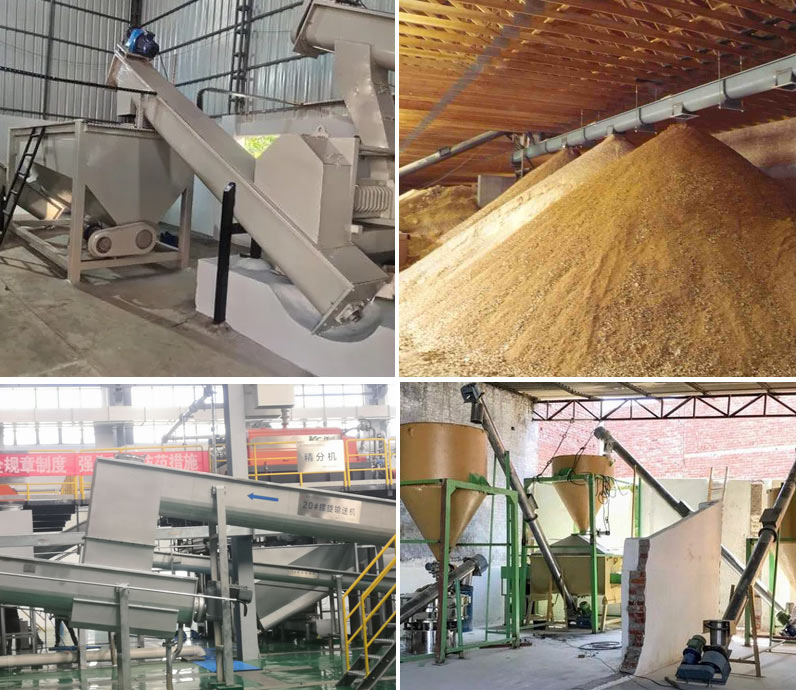

Industry Solutions

1. Soybean screw conveyor is used to process soybean particles

When the soybean screw conveyor is used to process soybean particles, stainless steel and carbon steel can be used, and the continuously rotating spiral blades provide impetus for the advancement of soybeans and prevent smooth soybeans from slipping.

2. Soybean screw conveyor is used to process soybean powder

The soybean screw conveyor that handles soybean powder is best made of 304 food-grade stainless steel, which is not only smoother, will not cause soybean powder residue to deteriorate, but is also safer and meets food production standards.
