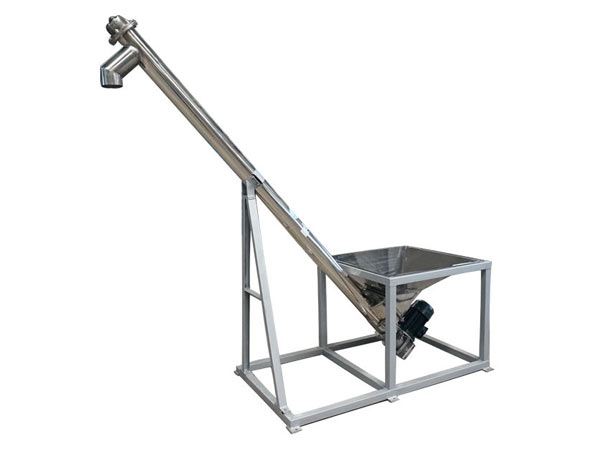

sugar screw conveyor

The machine for conveying sugar made of 304 stainless steel for food can be used with granulated sugar or powdered sugar production line equipment, and has the characteristics of large conveying capacity and good sealing.

Tilt angle: 0-60°

Length: 4-70 meters

Conveying capacity: 1.2-142m³/hour

Hopper volume: 200L

Material: 304 or 316L stainless steel

Product introduction of sugar screw conveyor

Sugar screw conveyors are used in the transportation of sugar and other sweeteners in the food industry, which can transport sugar and other sweeteners from storage silos or bags to mixing or processing equipment, the conveyor is usually made of stainless steel or other corrosion-resistant and easy Clean materials reduce the risk of contamination and make the conveyor easy to clean.

According to the conventional layout of the sugar factory, the sugar screw conveyor is mostly inclined or vertical, and has its own feeding bin, which can be used in conjunction with the feeder, screening machine, and packaging machine in the sugar production line to realize sugar industry. Dust-free automated production reduces manual input and intervention.

Sugar Screw Conveyor

Application

Sugar augers are commonly used in the sugar industry to transport sugar and other sweeteners. Below are some common applications of screw conveyors in the sugar industry:

Ingredient Handling: Used to transport sugar and other sweeteners from storage silos or bags to mixing or processing equipment. Screw conveyors can be designed to provide a consistent and accurate feed rate, which helps to increase the efficiency of the production process.

Packaging: Can be used to convey sugar to packaging equipment such as baggers or filling machines. This enables efficient and accurate packaging of sugar into bags, containers or other packaging formats.

Storage and Handling: Can be used to move sugar between different storage locations, e.g. from temporary storage hoppers to bulk storage silos. This helps ensure sugar is stored and handled in a safe and efficient manner.

Quality Control: Can be used to feed sugar to quality control systems such as metal detectors or sieves. This allows the sugar to be screened for contaminants or impurities before it is used in the production process.

Waste Disposal: Can be used to transport sugar waste such as spillage or product that does not meet quality standards to waste disposal systems for disposal or recycling.

Video

Product advantages

1. Hygienic design: in line with the strict hygiene requirements of the food industry. The smooth surfaces of the stainless steel screws and pipes reduce the risk of contamination and make the conveyor easy to clean.

2. Accurate and reliable: designed to provide accurate and reliable transportation of sugar and other sweeteners. The screw design ensures that material moves at a consistent rate along the length of the conveyor, which helps increase the efficiency of the production process.

3. Dust-proof design: The dust-proof design helps to minimize dust emissions and improve the safety of the production process. The screw conveyor can be designed with functions such as dust-proof sealing to ensure the safe and hygienic transportation of sugar.

4. Customizable design: The sugar screw conveyor can be designed to meet the specific requirements of the application, including the size and shape of the screw and the diameter and length of the pipe. This makes it possible to follow the production process .

5. Low maintenance costs: Sugar screw conveyors require minimal maintenance compared to other types of conveying systems. Stainless steel components are extremely durable and require no lubrication, which helps reduce maintenance costs and downtime.

Model parameters

Model		Diameter (mm)	Pitch (mm)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)	Rotating speed (r/min)	Capacity (m³/h)
Small	100	100	100	140	2.2	112	1.7	90	1.4	71	1.1
	125	125	125	125	3.8	100	3	80	2.4	63	1.9
	160	160	160	112	7.1	90	5.7	71	4.5	56	3.6
	200	200	200	100	12.4	80	9.9	63	7.8	50	6.2
Small	250	250	250	90	21.8	71	17.2	56	13.6	45	10.9
	315	315	315	80	38.8	63	30.5	50	24.2	40	13.4
	400	400	355	71	62.5	56	49.3	45	38.6	36	31.7
Large	500	500	400	63	97.7	50	77.6	40	62	32	49.6
	630	630	450	50	138.5	40	110.8	32	88.6	25	69.3
	800	800	500	40	198.5	32	158.8	25	124.1	20	99.3

product structure

The sugar screw conveyor is mainly composed of a driving device, a casing, a cover plate, a screw shaft, a screw blade, a material inlet, and a material outlet.

1. Driving device: Composed of motor and deceleration device, it drives the screw shaft and the screw blades to rotate.

2. Spiral blade: used to push the sugar forward to the specified conveying direction.

3. Chassis: provide running space for sugar transportation and regulate the flow direction of sugar.

4. Spiral shaft: It is made of hollow steel pipe, and a small section of solid shaft is used at the connection between the shaft and the shaft and where the bearing is installed. The diameter of the solid shaft is small, and it can be plugged into the hollow steel pipe for connection, and there will be no connection protrusions to cause sugar blockage.

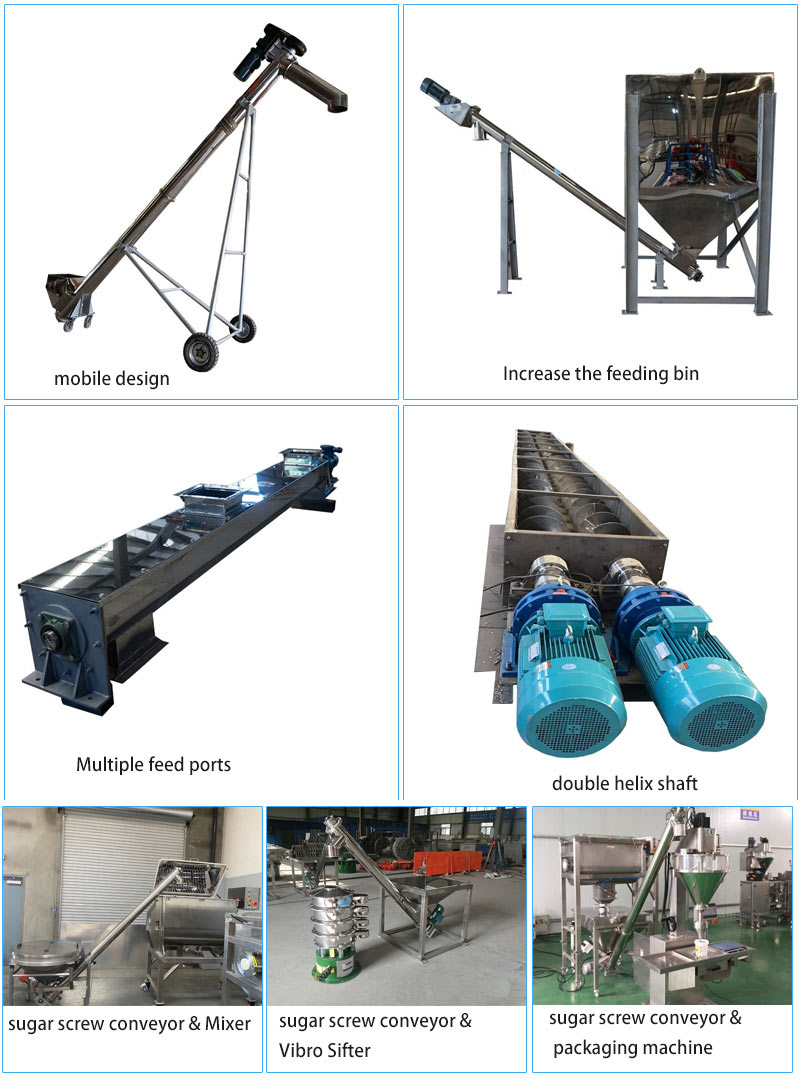

Special Design Display

Application display

Sugar Refinery

Sugar Refinery: A sugar refinery in the United States uses screw conveyors to transport raw sugar from the storage silos to the processing equipment. The screw conveyors are designed with stainless steel screws and tubing to ensure that the sugar is transported in a hygienic and dust-free manner. The screw conveyors are also equipped with dust-tight seals and other features to minimize the risk of contamination.
Sugar Packaging Plant

A sugar packaging plant in Brazil uses screw conveyors to transport granulated sugar from the production line to the packaging equipment. The screw conveyors are designed with a special coating to prevent the sugar from sticking to the screw or tubing. The screw conveyors are also equipped with a dust collection system to minimize dust emissions and improve the safety of the production process.
Sugar Cane Processing

A sugar cane processing plant in India uses screw conveyors to transport bagasse, a byproduct of the sugar cane crushing process, to the storage area. The screw conveyors are designed with a heavy-duty screw and tubing to withstand the abrasive nature of the bagasse. The screw conveyors are also equipped with a variable frequency drive to control the speed of the screw and ensure a consistent feed rate.
