Tubular Screw Conveyor
Convey powder or granular materials in a specified direction and angle in a sealed pipeline
Pipe diameter: 100mm-1250mm
Conveying length: 2-70 meters
Conveying capacity: 142 cubic meters per hour
Angle: 0-90 degrees
Can be used in concrete production (for fly ash, filler dust, silica fume), premixed building materials (dry plaster, sand, cement, additives), glass processing (calcium carbonate, soda, sand, etc.), foundries (sand , bentonite), etc.
Introduction of Tubular Screw Conveyor
Tubular screw conveyor uses rotating screw blades to transport material ode in a sealed pipeline. It can be used to transport powder and granular materials in industries such as flour, grain storage, and feed. The conveying angle is from 0 degrees to 90 degrees.
Tubular screw conveyor adopts completely sealed conveying, which is conducive to conveying powdery materials, avoids dust pollution to the environment, improves working conditions, and has the characteristics of uniform feeding and not easy to block materials.
Different Product Categories
-
Stainless Steel Tubular Screw Conveyor
The overall machine is made of SS304 or 316L stainless steel, which is usually used for material processing in the food or pharmaceutical industry. The conveying pipe groove is polished to ensure smoothness to avoid material adhesion, and the fully enclosed round pipe prevents foreign matter from contaminating the material.
-
Vertical Tubular Screw Conveyor
The vertical Tubular Screw Conveyor can vertically lift fluid or semi-fluid materials to a height of 8m, and process the materials that need to be lifted and conveyed with the minimum space occupation.>
-
Cement Tubular Screw Conveyor
The special cold-rolled blade improves the hardness, and the hardness of the outer blade reaches HB240, which is more wear-resistant, and is suitable for conveying highly abrasive granular powder materials such as cement and aggregate.
Application
Tubular screw conveyor is used to convey powdery or granular materials, which can be arranged horizontally, inclined and vertically. It is widely used in concrete production (for fly ash, filler dust, silica fume), pre-mixed building materials (dry plaster, sand, cement, additives), glass processing (calcium carbonate, soda, sand, etc.), foundries (sand, bentonite), etc.
-
Tubular Screw Conveyor with vibrating sieve
-

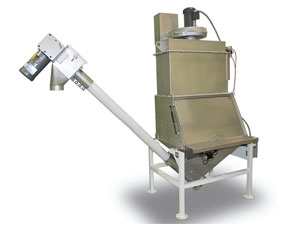

Tubular Screw Conveyor with Dust-free feeding station
-
Tubular Screw Conveyor with U-shaped screw conveyor
-
Tubular Screw Conveyor with mixer
-
Tubular Screw Conveyor with silo
-

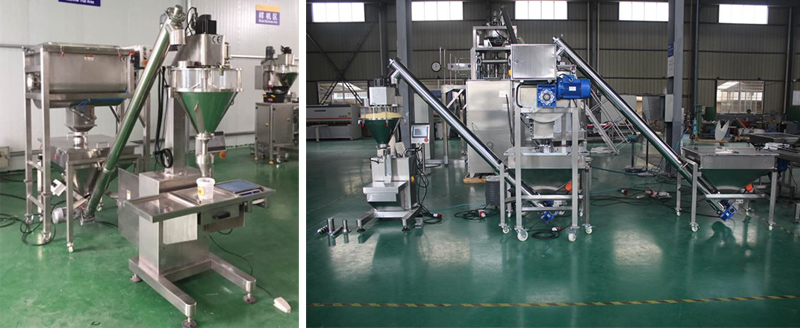

Tubular Screw Conveyor with packaging machine
Advantages and limitations of Tubular Screw Conveyor
Advantages of Tubular Screw Conveyor
Tubular Screw Conveyor is the most conventional screw form with a long production history. This type of screw conveyor mainly has the following advantages:
1. Compared with other conveying systems, Tubular Screw Conveyor has lower cost, less cost and high cost performance.
2. The fully-sealed conveying pipe tank can avoid material escaping or dust flying when conveying powdery materials, reducing pollution and waste.
3. The conventional conveying distance can reach 30m, and the design of double motors can be carried out above 30m, and multiple conveying equipment can also be connected and used.
4. It can realize the transportation at any angle of 0-90°, and the vertical lifting height can reach 8m, which greatly reduces the extra space occupation in the case of inclined transportation.
5. The bearing, material, material inlet, outlet, motor, blade form and other accessories of Tubular Screw Conveyor can be selected according to actual application requirements.
Limitations of Tubular Screw Conveyor
But in actual application, you still need to pay attention to several inevitable problems of Tubular Screw Conveyor. Maybe if you face these problems, you need to choose other types of screw conveyors:
1. Avoid conveying materials with high adhesion or high moisture content, and prevent the occurrence of blockage inside the Tubular Screw Conveyor conveying pipe groove and cannot be cleaned.
2. The conveying capacity of Tubular Screw Conveyor is limited, and it changes according to the density, volume and size of conveyed materials, and is related to the conveying speed and pitch of the conveyor.
3. If the material is highly abrasive and corrosive, and to accelerate the wear of the Tubular Screw Conveyor, more frequent maintenance and replacement of accessories is required.
Video
Technical Parameters
| LS Type | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| GX Type | 200 | 250 | 300 | 400 | 500 | ||||||
| Spiral diameter（mm） | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| pitch（mm） | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Rotating speed（r/min） | 140 | 120 | 90 | 90 | 75 | 75 | 60 | 60 | 45 | 35 | 30 |
| Delivery volume QΦ=0.33（m3/h） | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 | 458 |
| power Pd 1=10m（KW） | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 4.1 | 8.6 | 12 | 16 | 24.4 |
| power Pd 1=30m（KW） | 1.6 | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 | 73.3 |
| Rotating speed（r/min） | 120 | 90 | 75 | 75 | 60 | 60 | 45 | 45 | 35 | 30 | 20 |
| Delivery volume QΦ=0.33（m3/h） | 1.9 | 5.7 | 18 | 18 | 29.1 | 52.9 | 69.8 | 125 | 174 | 261 | 305 |
| power Pd 1=10m（KW） | 1.0 | 1.3 | 2.1 | 2.1 | 2.9 | 4.1 | 4.7 | 6.8 | 9.4 | 14.1 | 16.5 |
| power Pd 1=30m（KW） | 1.5 | 2.3 | 4.5 | 4.5 | 7 | 8.9 | 11.6 | 20.4 | 28.3 | 42.2 | 49.5 |
| Rotating speed（r/min） | 90 | 75 | 60 | 60 | 45 | 45 | 35 | 35 | 30 | 20 | 16 |
| Delivery volume QΦ=0.33（m3/h） | 1.4 | 4.8 | 15 | 15 | 21.8 | 39.6 | 54.3 | 97 | 149 | 174 | 244 |
| power Pd 1=10m（KW） | 0.9 | 1.2 | 1.9 | 1.9 | 2.5 | 3.4 | 4.3 | 5.4 | 8.1 | 9.5 | 13.3 |
| power Pd 1=30m（KW） | 1.2 | 2.2 | 3.8 | 3.8 | 5.4 | 6.8 | 9.2 | 16 | 24.4 | 28.6 | 39.9 |
| Rotating speed（r/min） | 75 | 60 | 45 | 45 | 35 | 35 | 30 | 30 | 20 | 16 | 13 |
| Delivery volume QΦ=0.33（m3/h） | 1.2 | 3.8 | 11 | 11 | 17 | 31.7 | 46.5 | 73.0 | 99.3 | 139 | 199 |
| power Pd 1=10m（KW） | 0.75 | 1.1 | 1.6 | 1.6 | 2.1 | 3.1 | 3.7 | 4.6 | 5.7 | 7.7 | 11 |
| power Pd 1=30m（KW） | 1.1 | 1.8 | 3.4 | 3.4 | 4.4 | 5.6 | 8 | 14 | 16.7 | 23.2 | 33 |
The tubular screw conveyor produced by Dahan Company are available in various models, and we can also customize them according to your needs.
If you want to know more about the special options of the Tubular Screw Conveyor…
Product Structure
Tubular Screw Conveyor is mainly composed of spiral body, machine groove, bearing, driving device and so on.
Spiral body: It consists of a screw shaft and a screw blade welded on the shaft. According to the different winding directions of the screw blade on the rotating shaft, the Tubular Screw Conveyor screw blade is divided into two types: left-handed and right-handed.
Driving device: The motor is used as the driving force, decelerated by the cycloidal pinwheel reducer, and then the power is transmitted to the screw shaft through the coupling.
Bearing: Rolling hanging bearing, using 80000 type sealed bearing, with a dust-proof sealing structure on the shaft cover, commonly used in places where it is not easy to refuel, no oiling or oil contaminates the material, the sealing effect is good, the life of the hanging bearing is long, and the temperature of the conveyed material is good. ≤80℃.
Sliding hanging bearing, designed with dust-proof sealing device, is often used for conveying material with high temperature (>80°C) or conveying liquid material.
Solutions by Industry
Tubular Screw Conveyor with mixer/silo/storage tower used in feed production and breeding industry
Tubular Screw Conveyor for Grain Conveying and Flour Processing Conveyor (with explosion-proof motor), with Vibro Sifter
Multiple Tubular Screw Conveyors are connected to form a conveyor line to work in chemical plants, foundries and other environments
Our order history
| Client | Pipe diameter | Handling materials | Slope | Delivery volume | length | special design |
| Henan Jinmei xx Coal Chemical Co., Ltd. | 500 | fly ash | 15 degrees | 60 tons | 6 meters | / |
| Mr. Zhang | 426 | fertilizer granules | 45 degree | 50 tons | 7-8 meters | / |
| Mr. Wang | 219 | sawdust | 0-15 degrees | 10 cubic | 6-8 meters | add bracket |
| xx Chemical Co., Ltd. | 273 | Alumina powder | horizontal | 5 tons | 3 meters | / |
| Shandong xx food processing factory | 159 | meat | 30-40 degrees | 1.5 tons | 4 meters | Stainless steel |
| Ms. Cheng | 315 | lead slag | 10 degrees | 5 tons | 3.5 meters | Water cooling 800°C to 150°C |
| xxx (Guangzhou) Rubber Products Co., Ltd. | 500 | rubber powder | / | / | 4-6 meters | cool down |
| Henan xx Environmental Protection Technology Co., Ltd. | / | lime powder | 45 degree | 35-50 tons | Lifting height of more than 15 meters | / |
| Only some recent cases are shown | ||||||
Factory service
Dahan Machinery is a Tubular Screw Conveyor manufacturer from China with 15 years of production and operation experience. The product is guaranteed to be delivered within 48 hours, the drawings for special designs are produced within 72 hours, the machine is sold for 1 year free maintenance, and the product quality problem is unconditionally returned within 7 days.
Dahan Machinery has a modern industrial plant of 10,000 square meters, as well as professional production equipment and design and production personnel, focusing on solving various transportation and lifting problems.
How to choose the right Tubular Screw Conveyor?
Some selection tips from manufacturers:
1. What bulk materials need to be transported? What is their material and state?
2. How much conveying capacity do you need per hour and what is your feed rate?
3. What is the height of the material conveying to the next process and the distance you expect?
4. Design conditions such as Tubular Screw Conveyor material, feeding and discharging conditions, working temperature, and the size of the space reserved by the factory?
...
We provide you with professional selection guidance, machine design and thoughtful after-sales service. Consult now for more information.
